Equus Signature
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Smart Cruise Control System
>>
Smart Cruise Control Unit
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

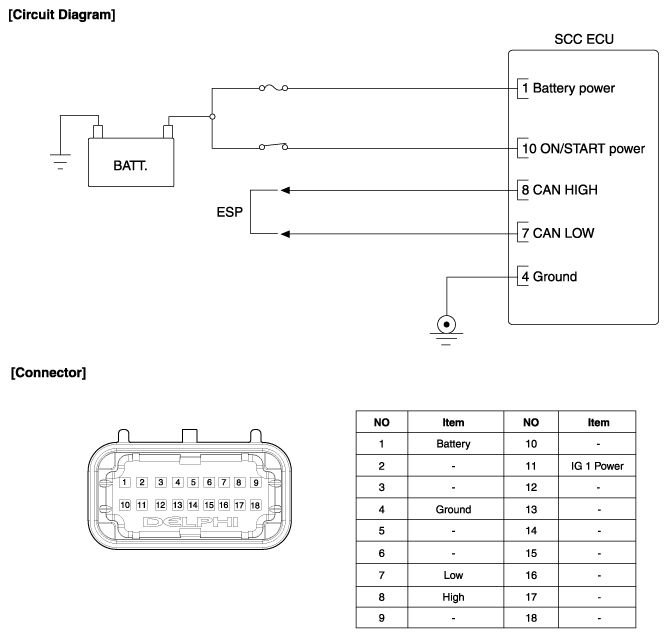

Fig 1: Smart Cruise Control (SSC) ECU Circuit Diagram And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
