Smart Key Control Module Connector End View (M30-C)

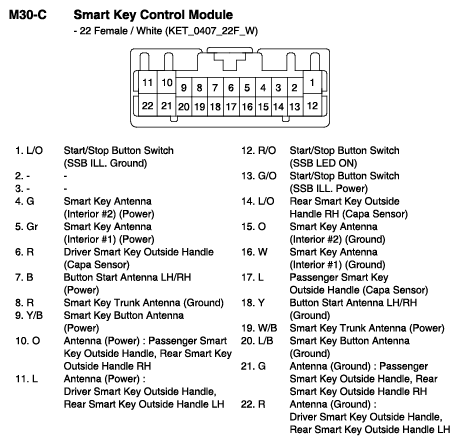

Fig 1: Smart Key Control Module Connector End View (M30-C)

G10769839

Courtesy of HYUNDAI MOTOR AMERICA
