Repair procedures: Inspection

The body control module can diagnose by using the GDS more quickly.
The BCM communicates with the GDS and then reads the input/output value and drives the actuator.
To diagnose the BCM function, select the menu of model and body control module.

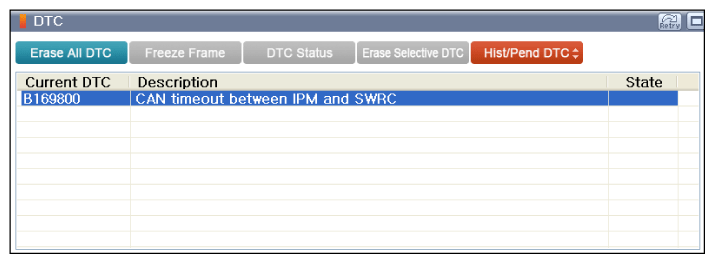

Fig 1: Display - CAN DTC Screen
Courtesy of HYUNDAI MOTOR AMERICA
Select "Input/output monitoring", if you will check current data of body network system. It provides input/output status of each module.

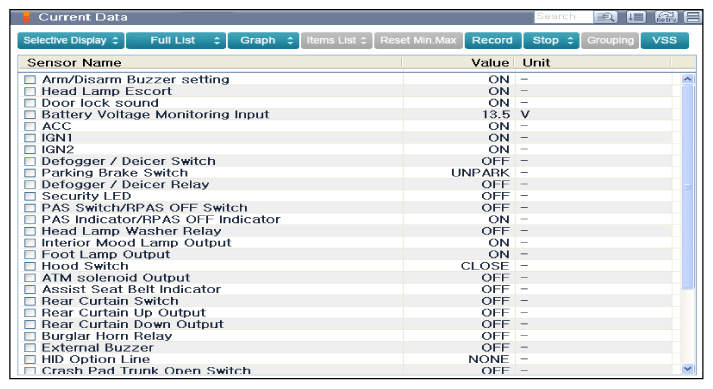

Fig 2: Display - Input/Output Monitoring Screen
Courtesy of HYUNDAI MOTOR AMERICA
If you will check each module data operation forcefully, select "Actuation test".

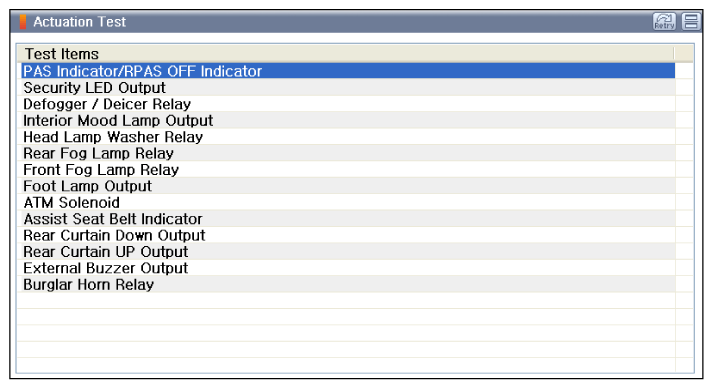

Fig 3: Display - Actuation Test Screen
Courtesy of HYUNDAI MOTOR AMERICA
If you want to change user option, select "user option".

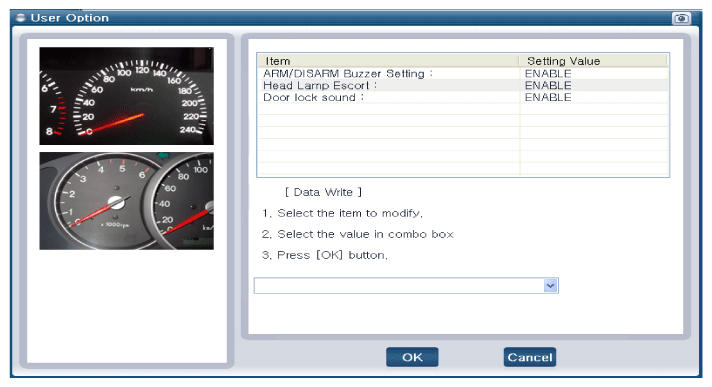

Fig 4: Display - User Option Screen (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

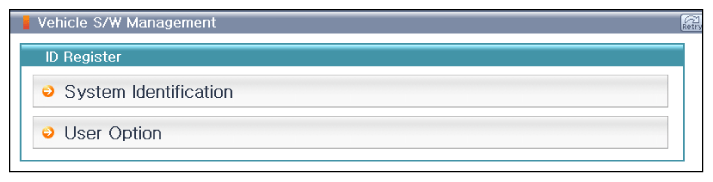

Fig 5: Display - User Option Screen (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
