Home >> Hyundai >> 2016 >> Elantra Value Edition >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - A6GF1 >> Shift Lever >> Components and Components Location >> Components

Components and Components Location: Components

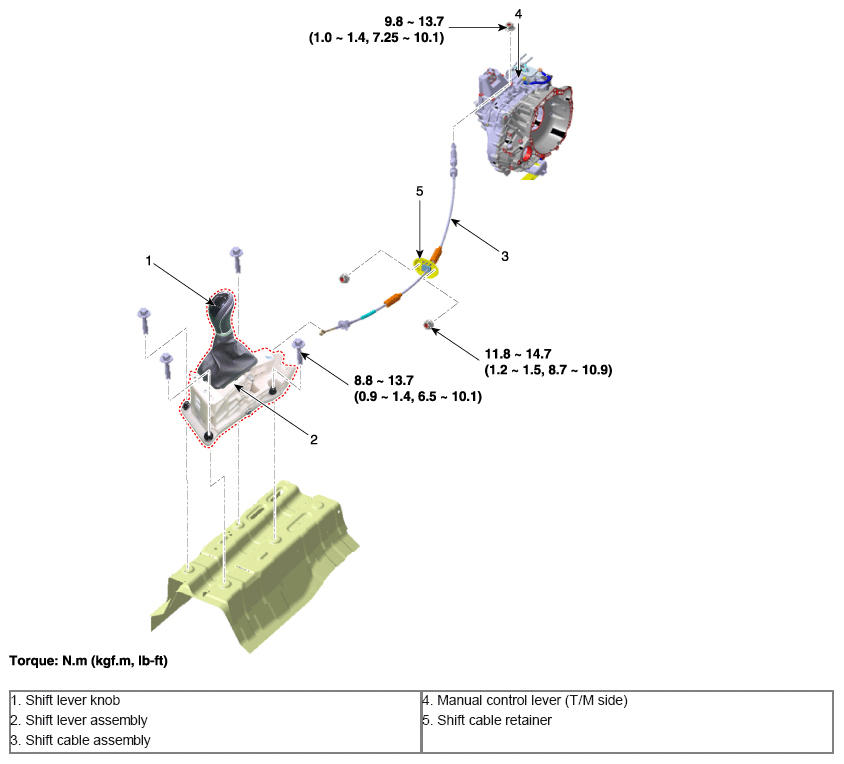

Fig 1: Shift Lever Components With Torque Specification

G10538073

Courtesy of HYUNDAI MOTOR AMERICA
