Signal Waveform

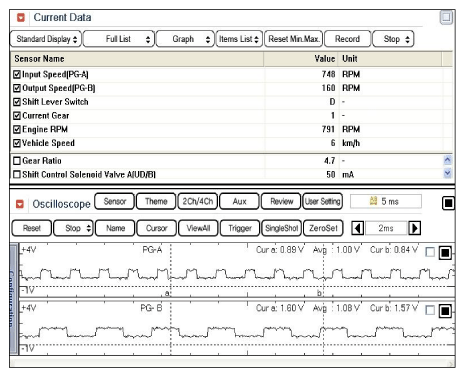

Fig 1: Screen Display - Input/Output Speed Sensor (Low Speed)
G10538019Courtesy of HYUNDAI MOTOR AMERICA

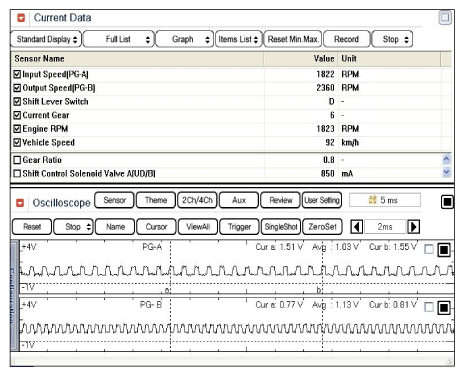

Fig 2: Screen Display - Input/Output Speed Sensor (High Speed)
G10538020Courtesy of HYUNDAI MOTOR AMERICA
