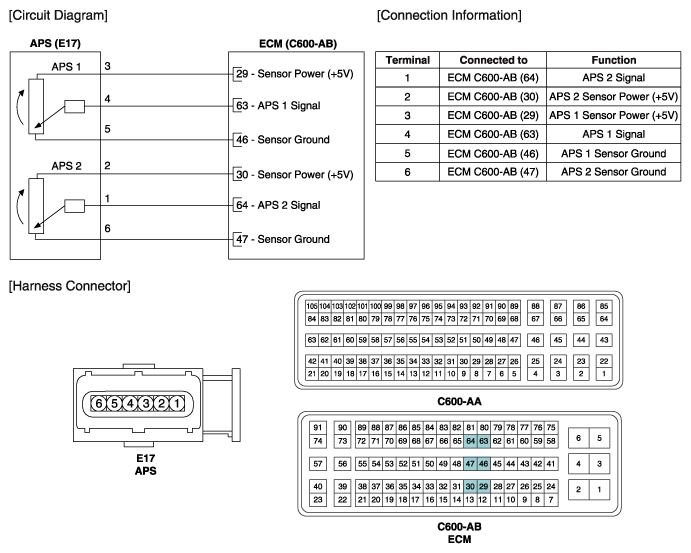

Home >> Hyundai >> 2016 >> Elantra Value Edition >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.8L >> Accelerator Position Sensor (APS) >> Schematic Diagrams >> Circuit Diagram >> (A/T)
