Components and Components Location: Components

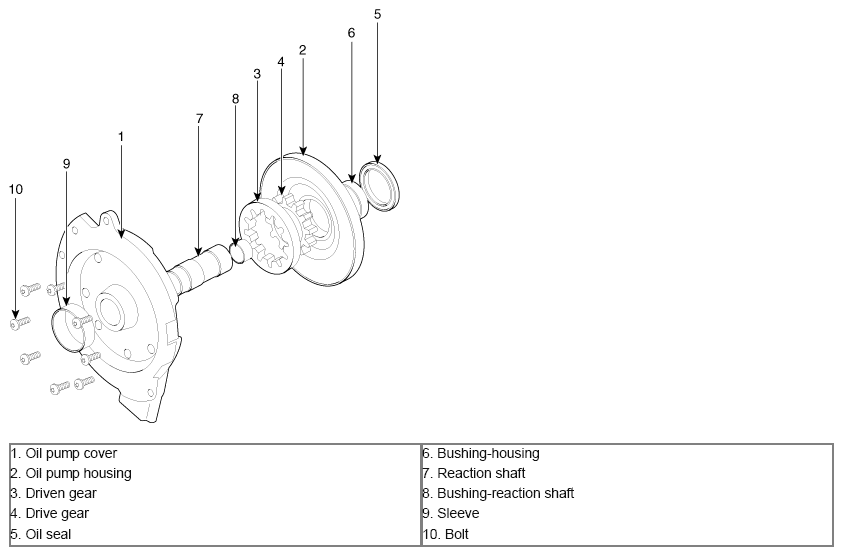

Fig 1: Oil Pump Components

G10537965

Courtesy of HYUNDAI MOTOR AMERICA
