Home >> Hyundai >> 2016 >> Elantra Sport, Automatic Trans >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Battery >> Components and Components Location >> Components

Components and Components Location: Components

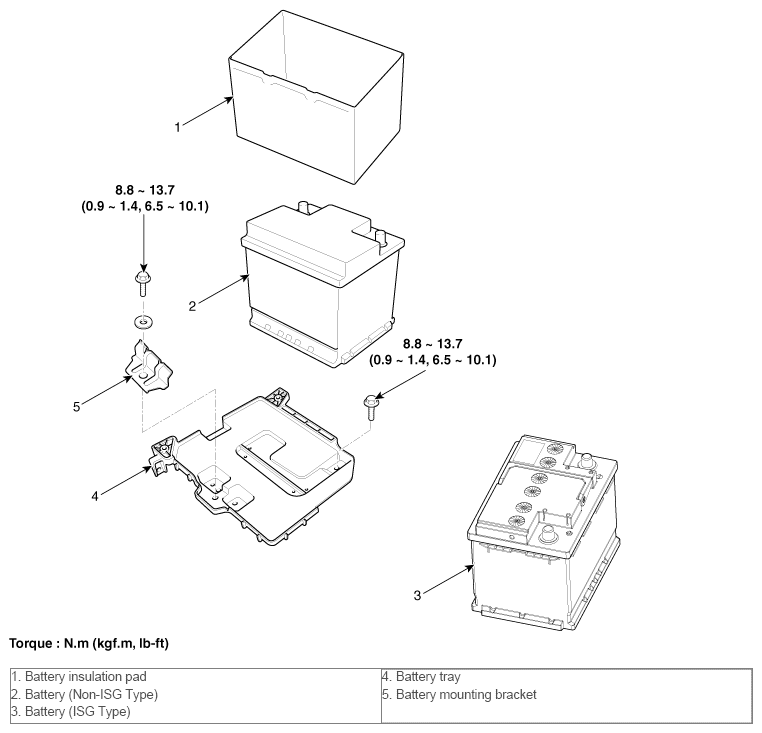

Fig 1: AGM Battery Components With Torque Specification
G10534009Courtesy of HYUNDAI MOTOR AMERICA
