Home >> Hyundai >> 2016 >> Elantra Sport, Automatic Trans >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> Rear Wheel Speed Sensor >> Components And Components Location >> Components

Components And Components Location: Components

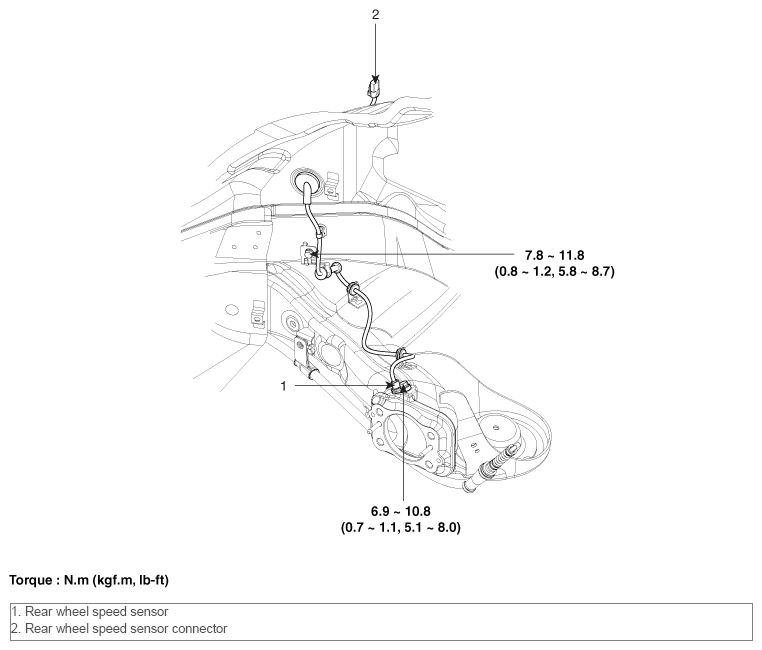

Fig 1: Rear Wheel Speed Sensor Components With Torque Specifications

G10534094

Courtesy of HYUNDAI MOTOR AMERICA
