Components And Components Location: Components

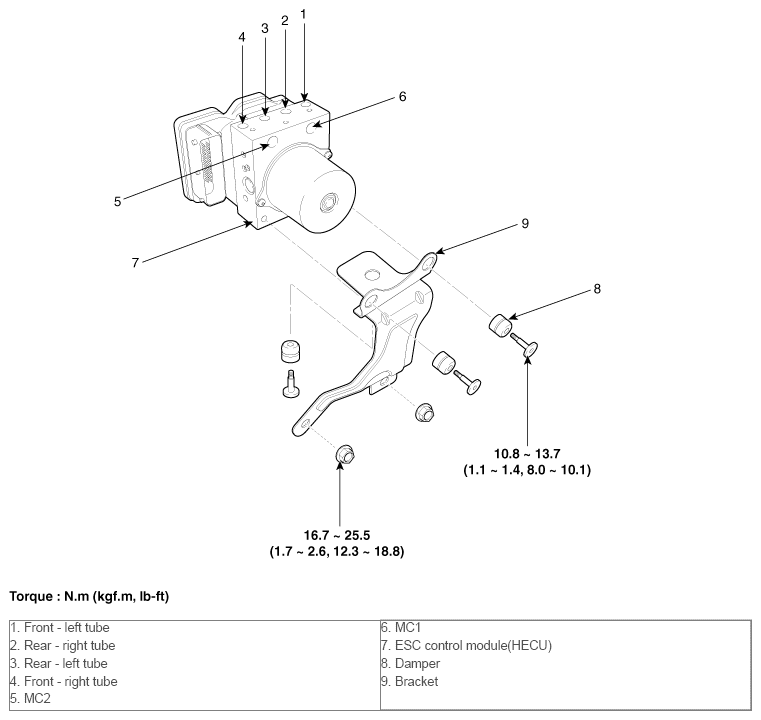

Fig 1: ESC Control Module Components With Torque Specifications

G10534085

Courtesy of HYUNDAI MOTOR AMERICA
