Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

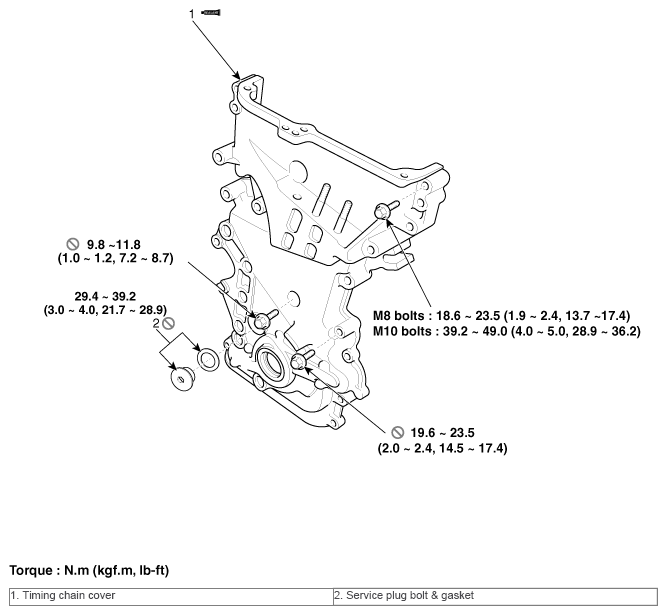

Fig 1: Timing Chain Cover, Service Plug Bolt And Gasket With Torque Specifications
G10749348Courtesy of HYUNDAI MOTOR AMERICA
