Driver Power Window Switch

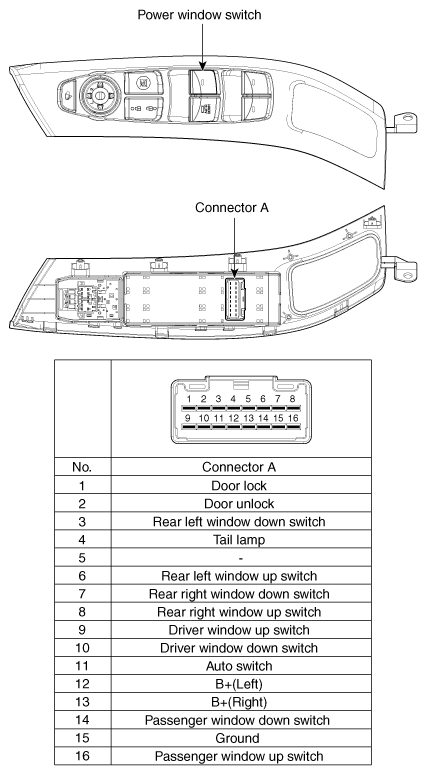

Fig 1: Driver Power Window Switch And Connector Terminal Identification

G10531060

Courtesy of HYUNDAI MOTOR AMERICA
