Repair procedures: Inspection
WARNING: This page is about a different car, the 2016 Hyundai Elantra and 2015 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

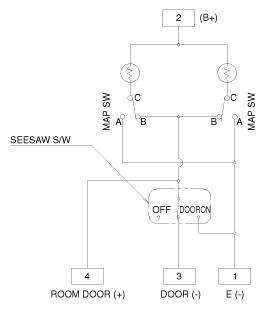

- Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.
Courtesy of HYUNDAI MOTOR AMERICA
| No. |
Description |
| 1 |
Ground (-) |
| 2 |
Battery (+) |
| 3 |
Door (-) |
| 4 |
Room (+) |
Courtesy of HYUNDAI MOTOR AMERICA
