Home >> Hyundai >> 2016 >> Elantra GT Automatic Trans >> Repair and Diagnosis >> Transmission >> Clutch System >> Clutch Cover And Disc >> Components and Components Location >> Components

Components and Components Location: Components

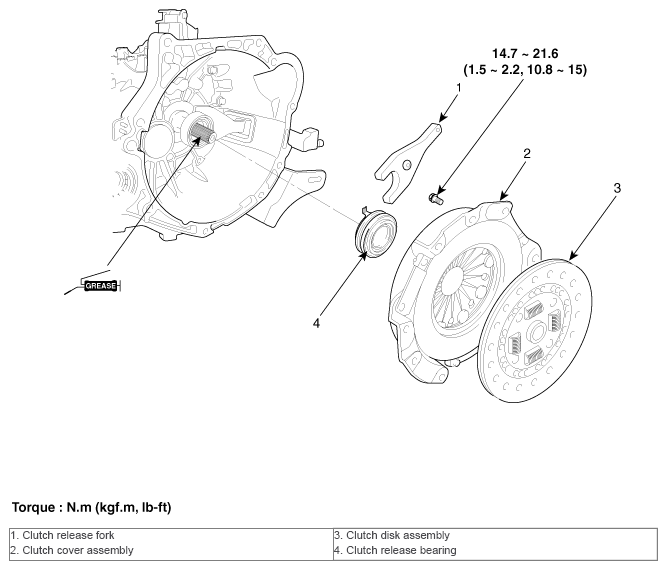

Fig 1: Clutch Cover And Disc Components Location With Torque Specification

G10750026

Courtesy of HYUNDAI MOTOR AMERICA
