Home >> Hyundai >> 2016 >> Elantra GT Automatic Trans >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Battery >> Troubleshooting

Charging System: Battery: Troubleshooting

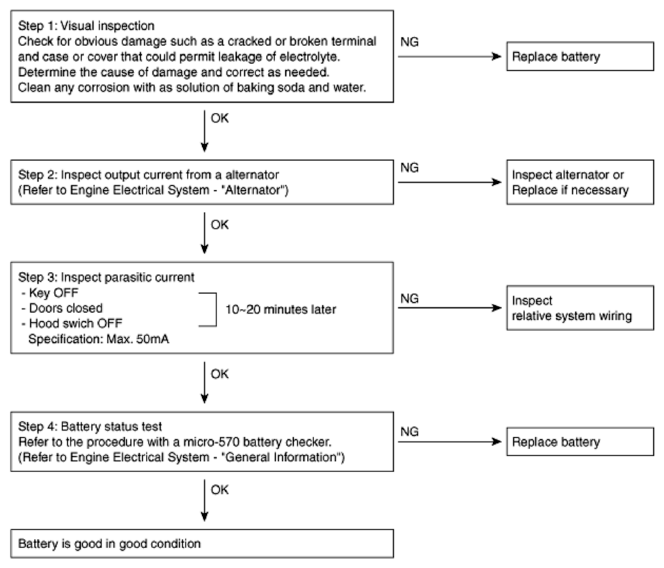

Fig 1: Battery Troubleshooting Flow Chart

G10749716

Courtesy of HYUNDAI MOTOR AMERICA
