Driver Power Window Switch

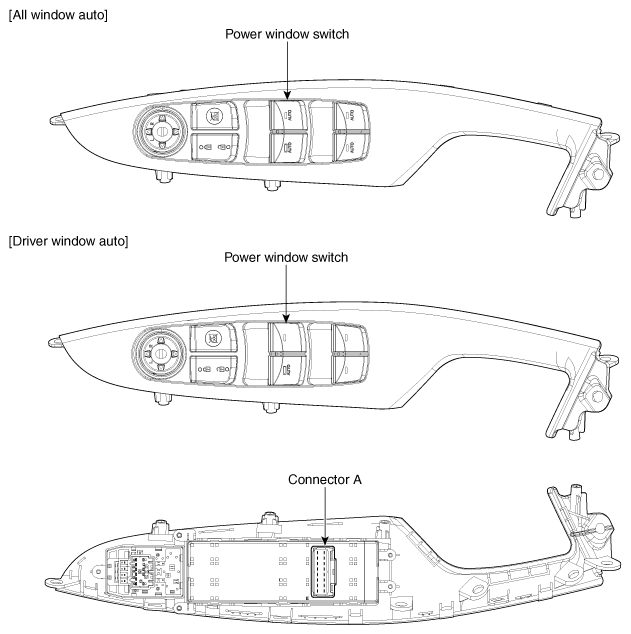

Fig 1: Identifying Driver Power Window Switch (All Window Switch)
G10751571Courtesy of HYUNDAI MOTOR AMERICA

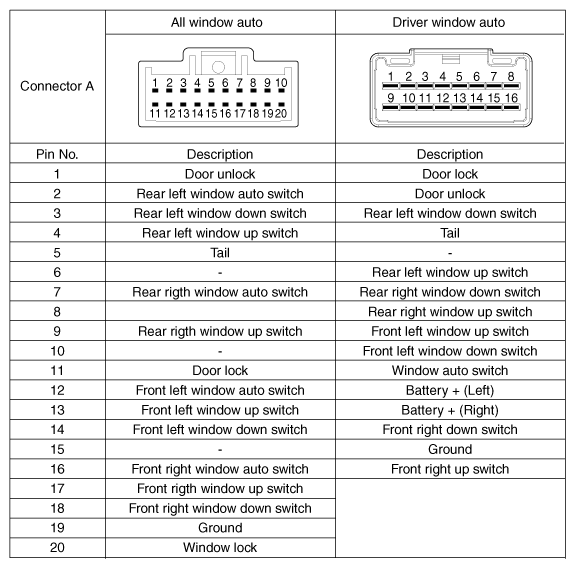

Fig 2: Identifying Driver Power Window Switch (Driver Window Auto)
G10751572Courtesy of HYUNDAI MOTOR AMERICA

[All Window Auto]

Fig 3: Power Window Switch - Circuit Diagram (All Window Auto)
G10751573Courtesy of HYUNDAI MOTOR AMERICA

[Driver Window Auto]

Fig 4: Power Window Switch - Circuit Diagram (Driver Window Auto)
G10751574Courtesy of HYUNDAI MOTOR AMERICA
