Schematic Diagram: Notes

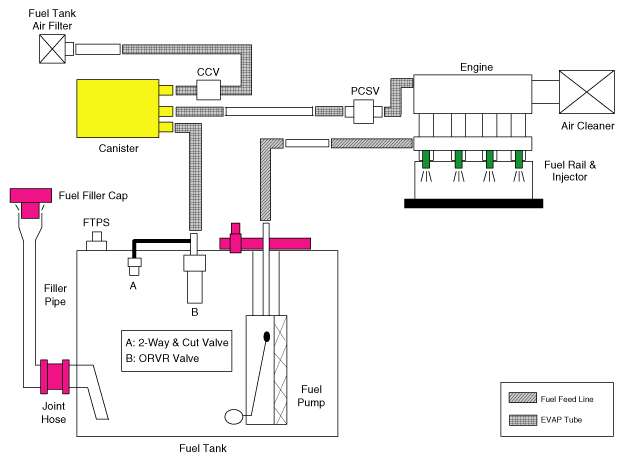

Fig 1: Evaporative Emission Control System Schematic Diagram

G10367335

Courtesy of HYUNDAI MOTOR AMERICA
