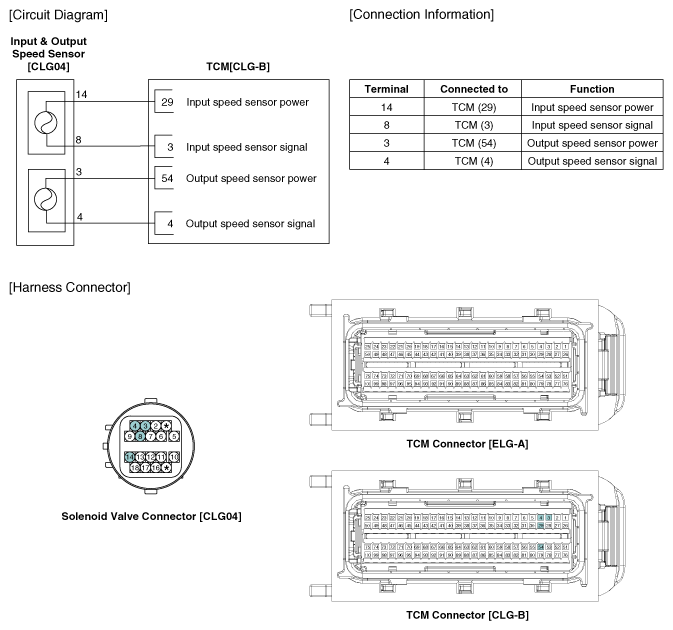

Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Output Speed Sensor >> Schematic Diagrams >> Circuit Diagram
