Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine & Transmission Assembly (R & I) >> Engine Room Under Cover >> Components and Components Location >> Components

Components and Components Location: Components

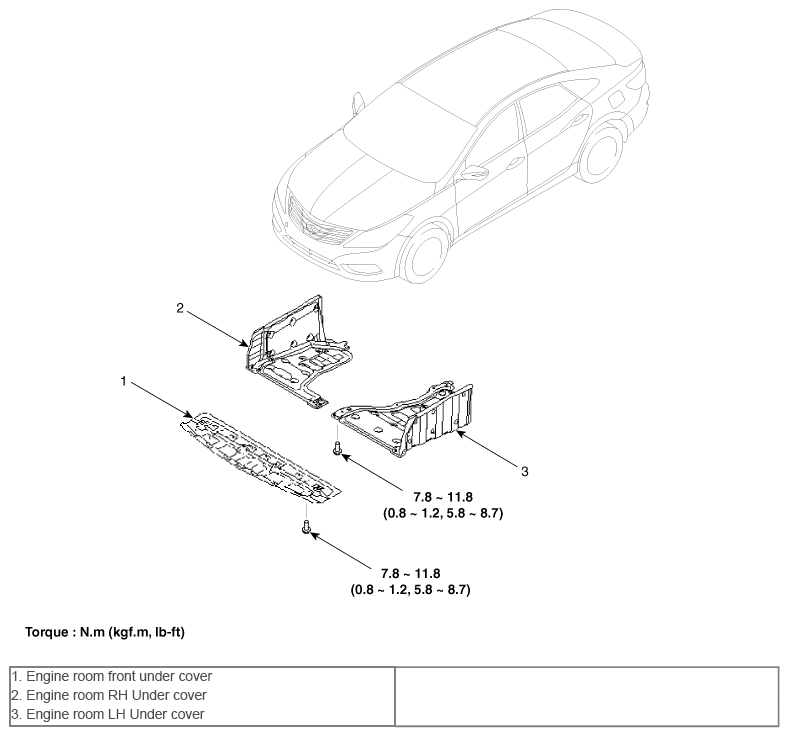

Fig 1: Engine Room Under Cover With Torque Specifications

G10366846

Courtesy of HYUNDAI MOTOR AMERICA
