Components and Components Location: Components

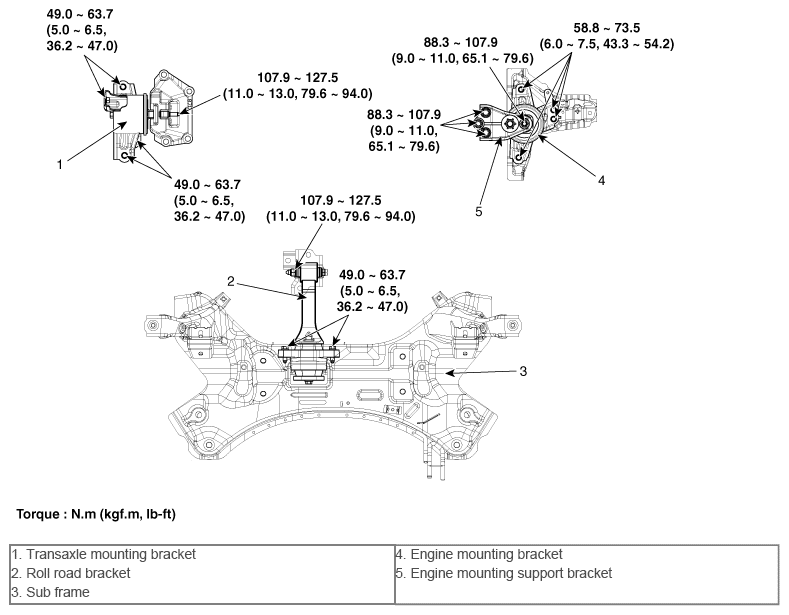

Fig 1: Engine Mounting Components With Torque Specifications

G10366848

Courtesy of HYUNDAI MOTOR AMERICA
