Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System Control Module (SRSCM) & Sensors >> Side Impact Sensor (SIS) >> Components and Components Location >> Components

Components and Components Location: Components

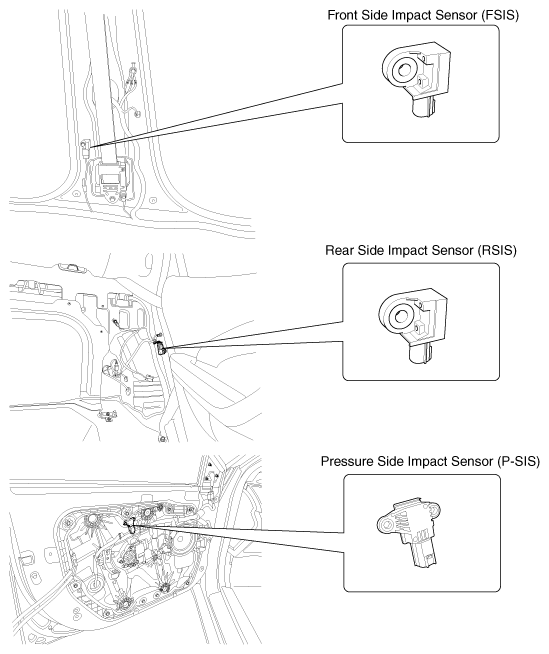

Fig 1: Side Impact Sensors

G10368059

Courtesy of HYUNDAI MOTOR AMERICA
