Passenger Safety Window Module Connector End View (D14)

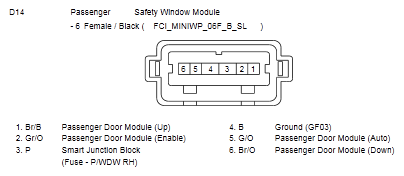

Fig 1: Passenger Safety Window Module Connector End View (D14)

G10776374

Courtesy of HYUNDAI MOTOR AMERICA
