Driver Safety Window Module Connector End View (D04)

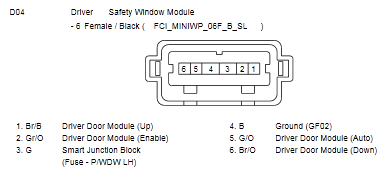

Fig 1: Driver Safety Window Module Connector End View (D04)

G10776367

Courtesy of HYUNDAI MOTOR AMERICA
