Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Blower System >> Blower Unit >> Components and Components Location >> Components

Components and Components Location: Components

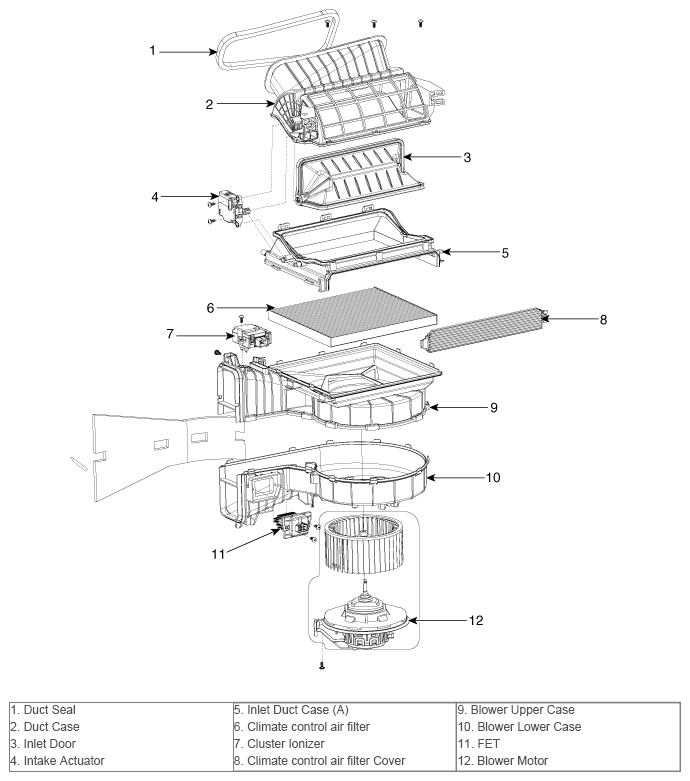

Fig 1: Blower Unit Components

G10369858

Courtesy of HYUNDAI MOTOR AMERICA
