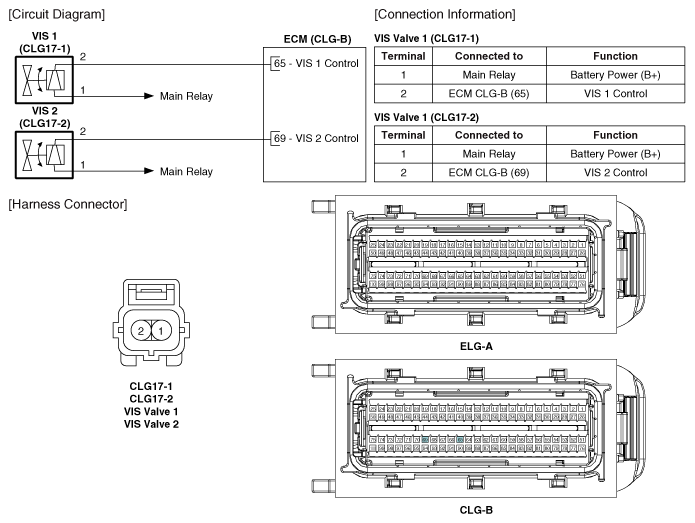

Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Variable Intake Solenoid (VIS) Valve >> Schematic Diagrams >> Circuit Diagram
