Components And Components Location: Components

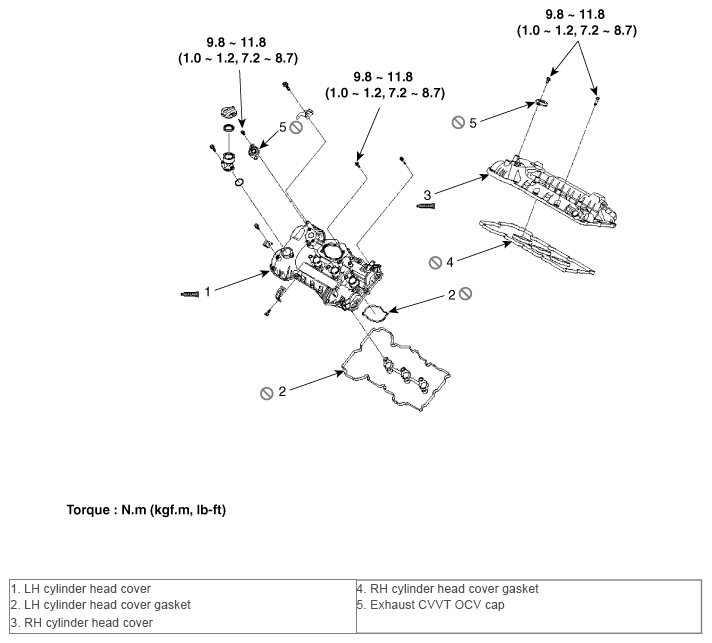

Fig 1: Cylinder Head Cover Components With Torque Specification

G10366932

Courtesy of HYUNDAI MOTOR AMERICA
