Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Cylinder Block >> Rear Oil Seal >> Components And Components Location >> Components

Components And Components Location: Components

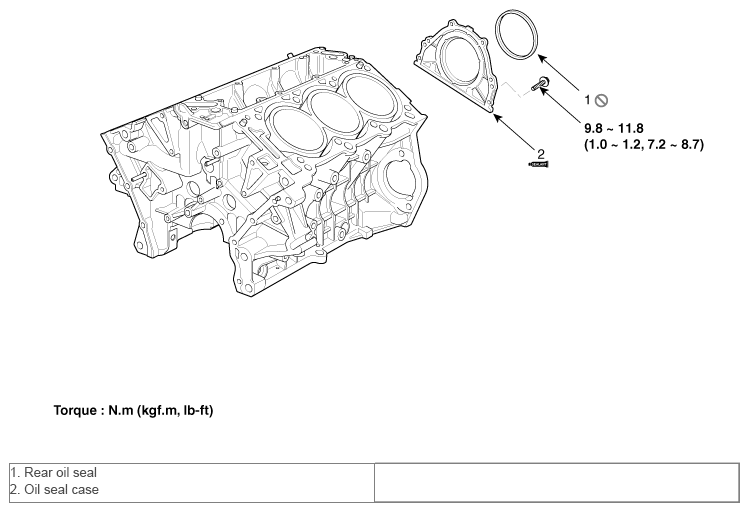

Fig 1: Rear Oil Seal Components With Torque Specification

G10367029

Courtesy of HYUNDAI MOTOR AMERICA
