Control To Ignition Coil Harness Connection Connector End View (CLGIGN)

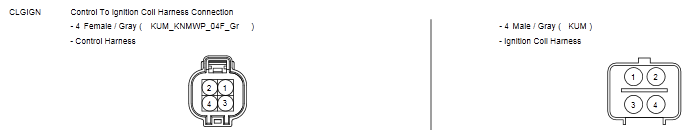

Fig 1: Control To Ignition Coil Harness Connection Connector End View (CLGIGN)

G10776489

Courtesy of HYUNDAI MOTOR AMERICA
