Components and Components Location: Components

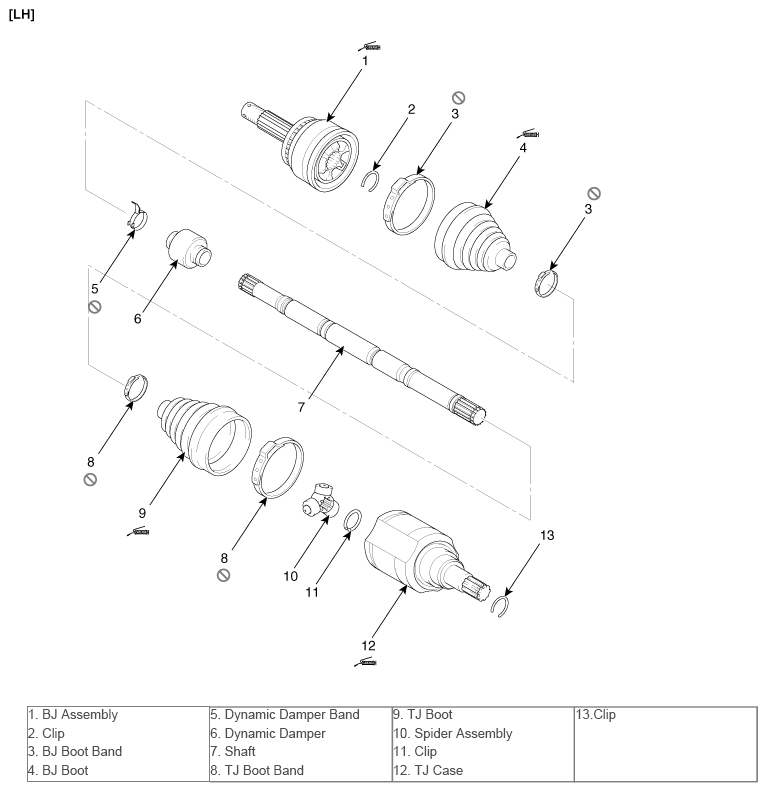

Fig 1: Front Driveshaft Components (LH)

G10367778

Courtesy of HYUNDAI MOTOR AMERICA

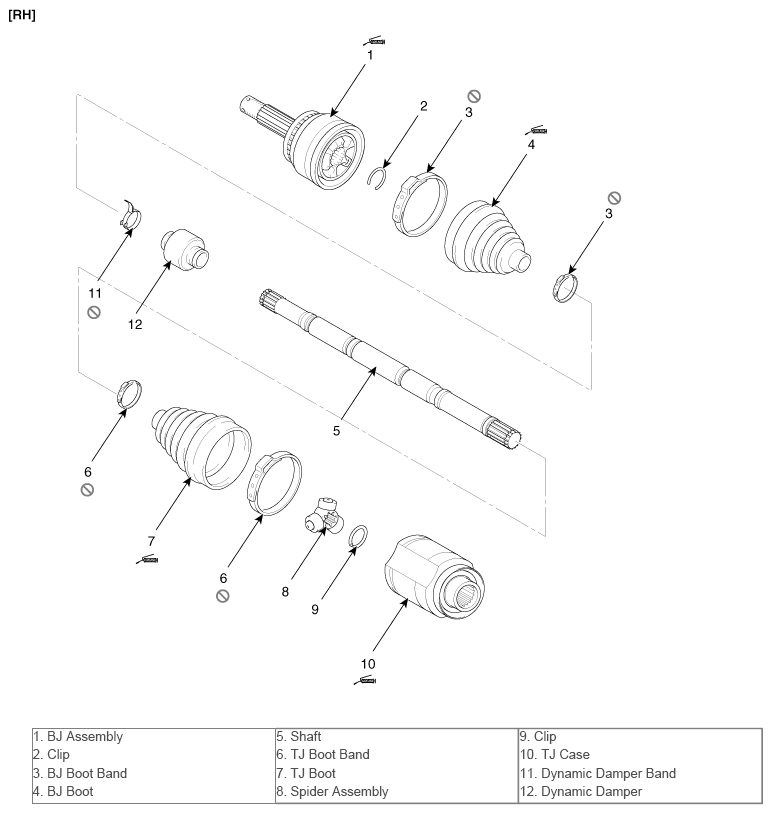

Fig 2: Front Driveshaft Components (RH)

G10367779

Courtesy of HYUNDAI MOTOR AMERICA
