Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> Dynamic Damper >> Components and Components Location >> Components

Components and Components Location: Components

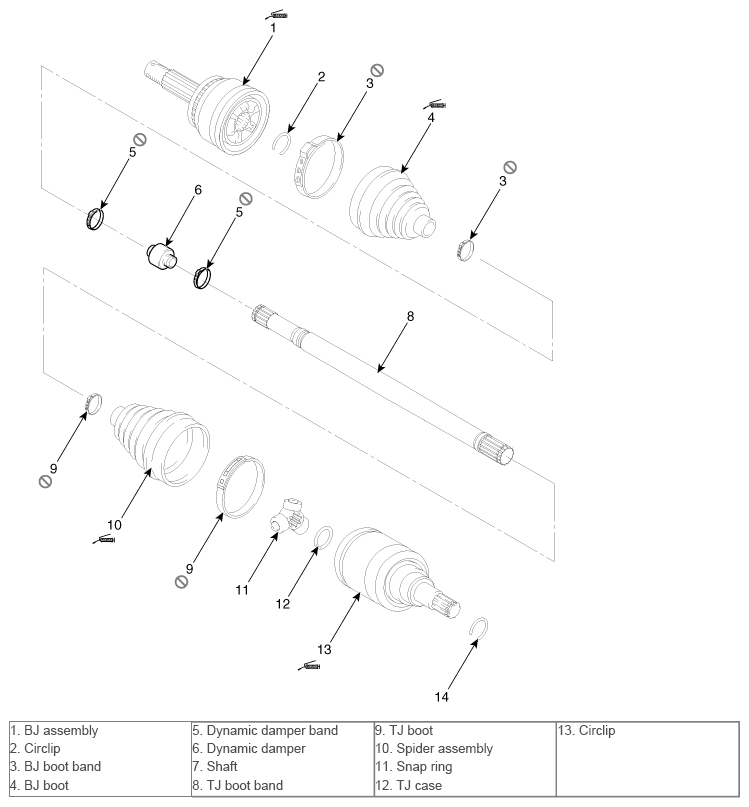

Fig 1: Dynamic Damper Components

G10367804

Courtesy of HYUNDAI MOTOR AMERICA
