Components and Components Location: Components

[LH]

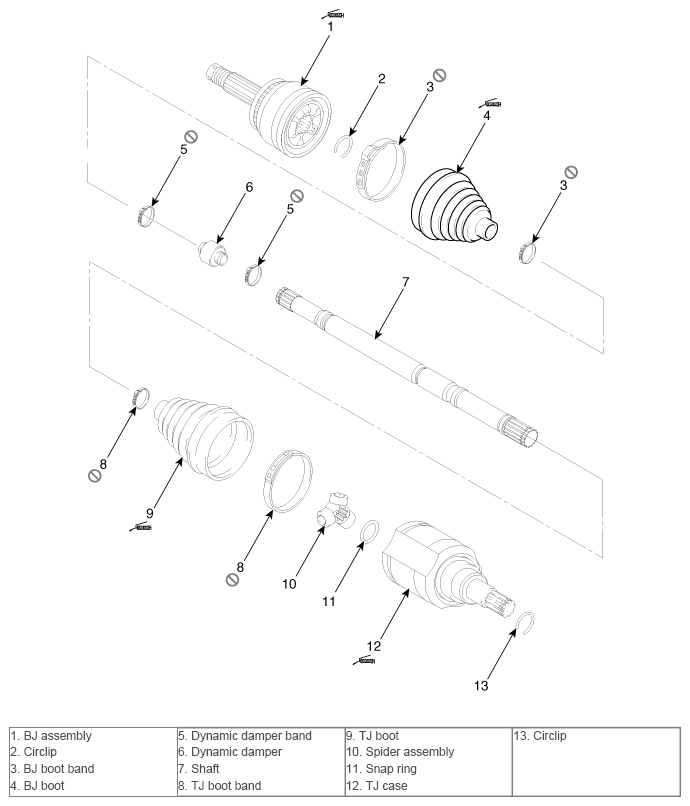

Fig 1: BJ Boot Components (LH)

G10367809

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

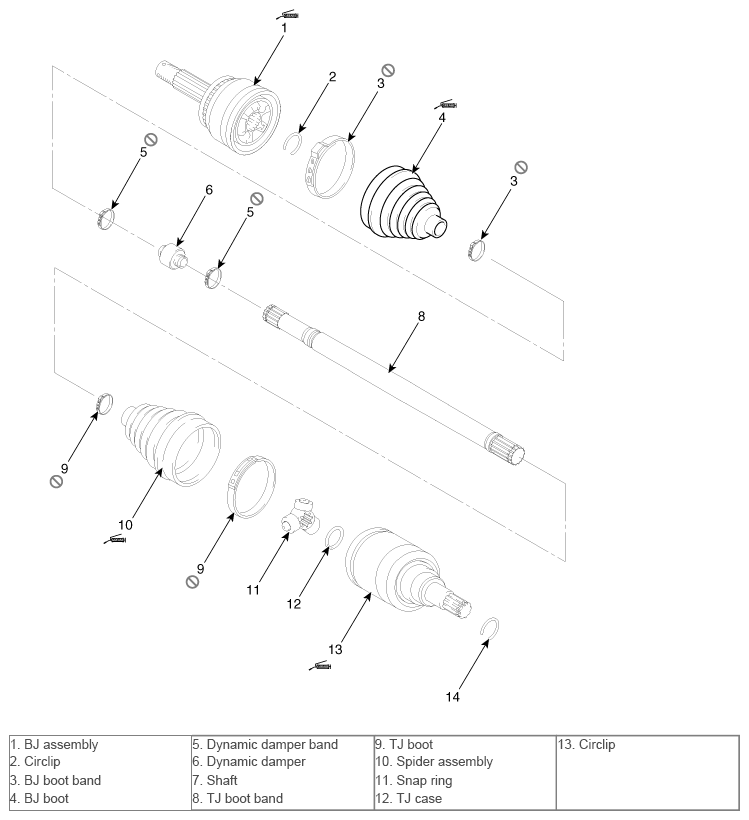

Fig 2: BJ Boot Components (RH)

G10367810

Courtesy of HYUNDAI MOTOR AMERICA
