Components and Components Location: Component

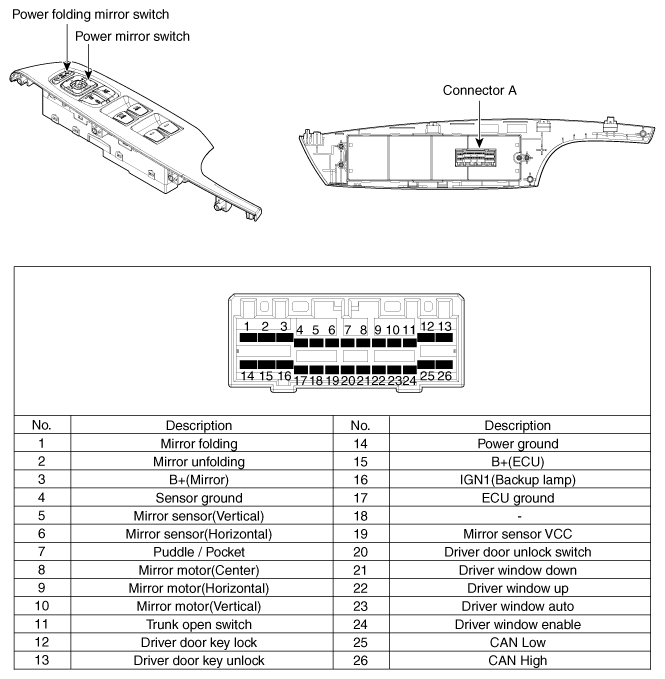

Fig 1: Power Out Side Mirror Switch Terminal Identification

G10369033

Courtesy of HYUNDAI MOTOR AMERICA
