Rear Body
>>
Body Repair
Body Repair

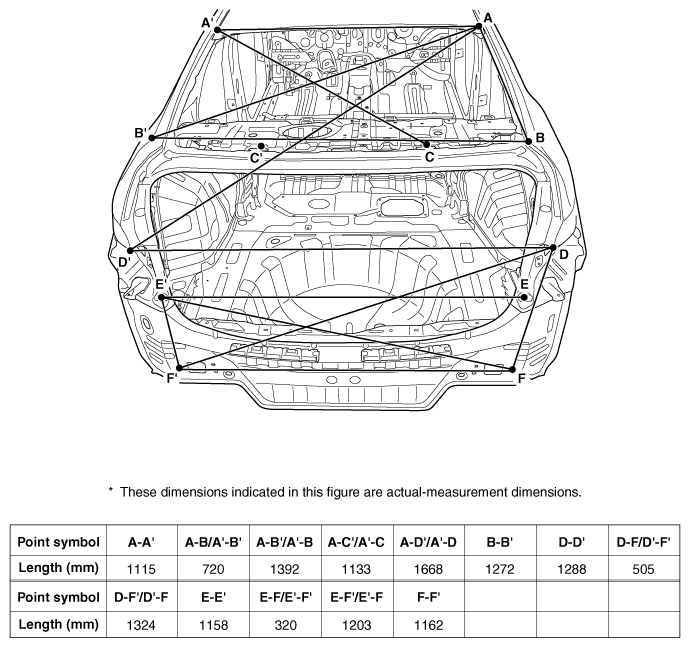

Fig 1: Rear Body Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

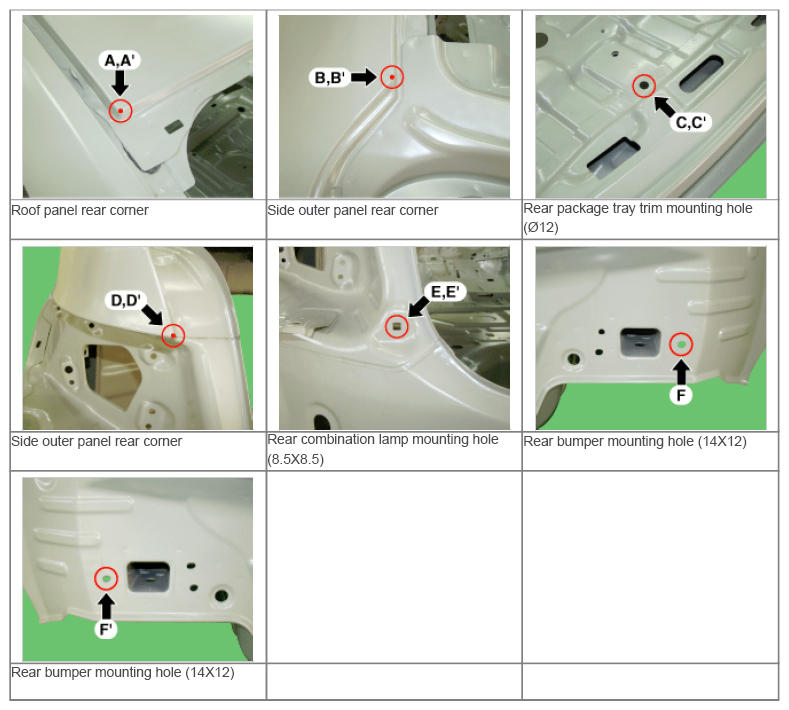

Fig 2: Roof And Side Outer Panel Rear Corners
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
