Body Dimensions
>>
Interior
>>
Interior C
Interior C

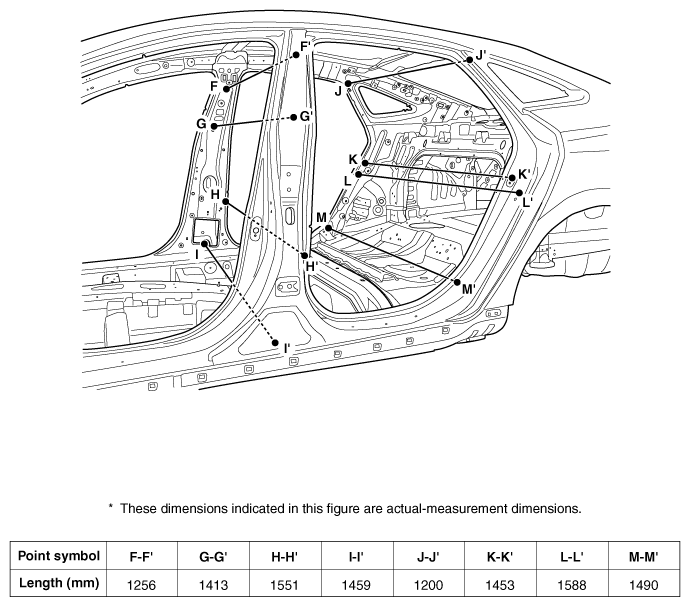

Fig 1: Interior C Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

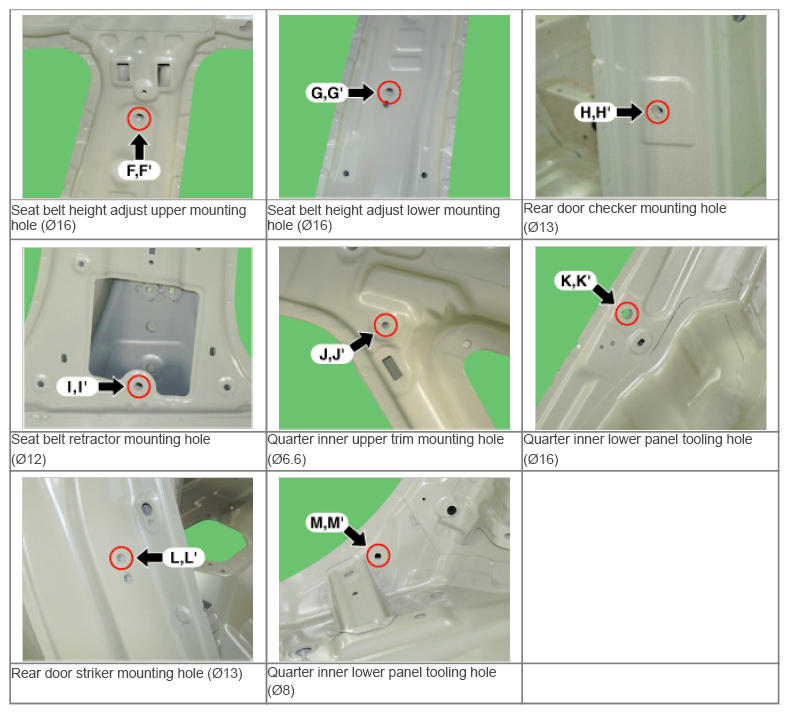

Fig 2: Quarter Inner Upper Trim Panel Tooling Hole
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
