Interior A
Interior A

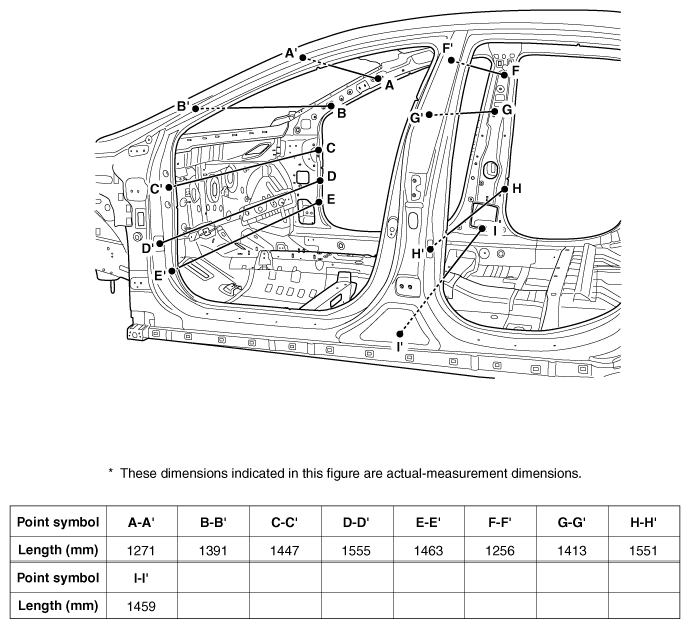

Fig 1: Interior A Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

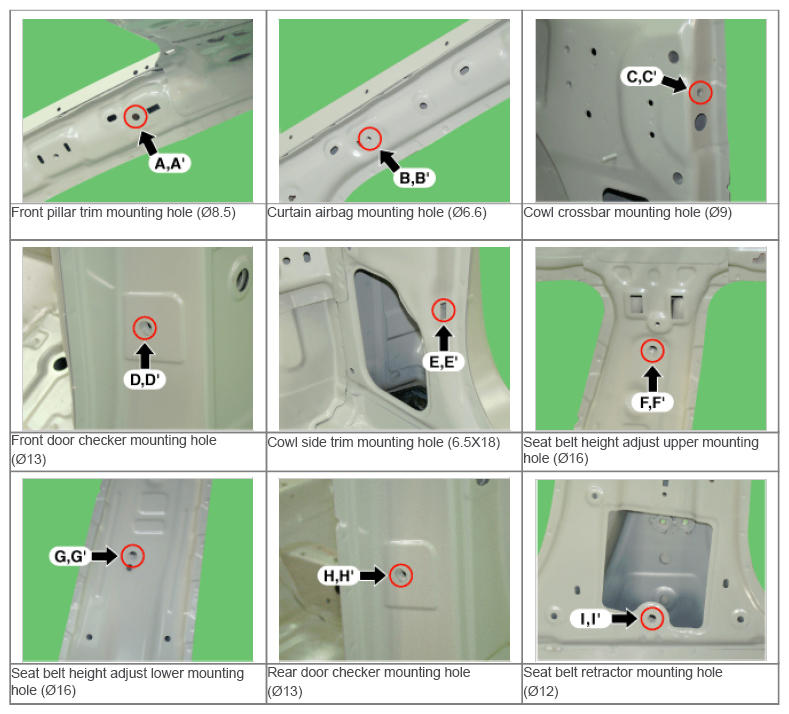

Fig 2: Front Pillar Trim And Cowl Crossbar Mounting Holes
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
