Body & Frame
>>
Frames, Subframes & Crossmembers
>>
Body Dimensions
>>
Front Body
>>
Front Body C
Front Body C

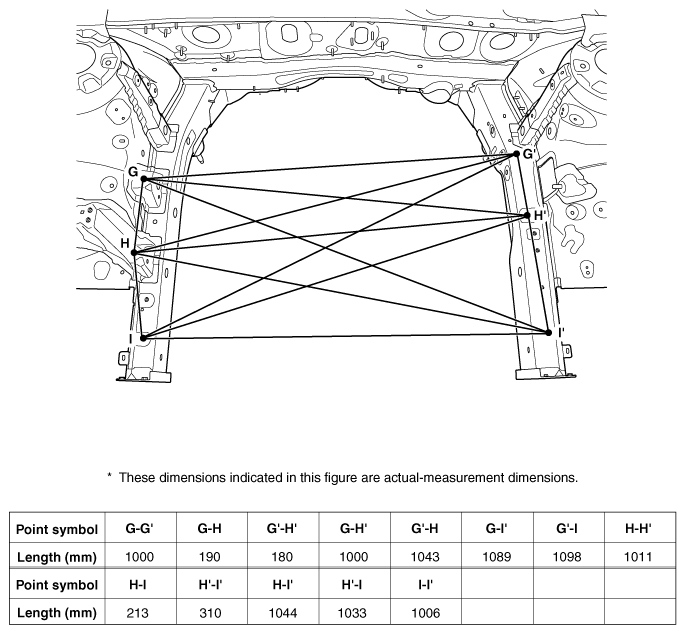

Fig 1: Front Body C Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

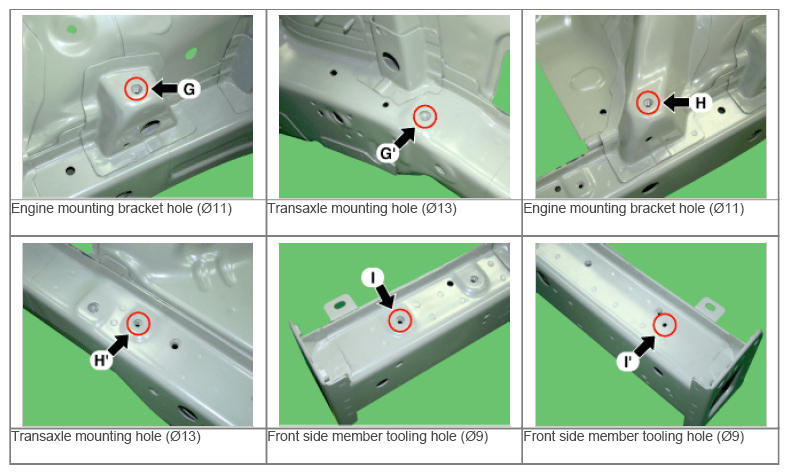

Fig 2: Transaxle Mounting And Engine Mounting Bracket Holes
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
