Front Body A
Front Body A

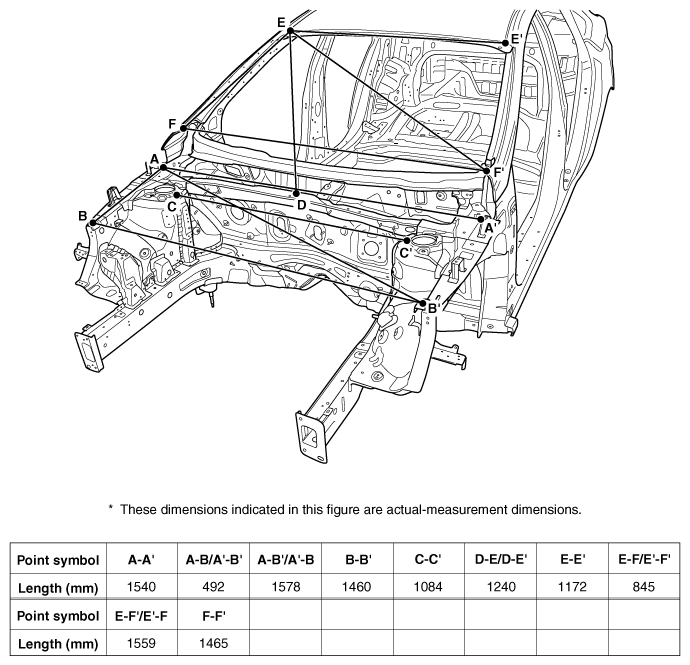

Fig 1: Front Body A Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

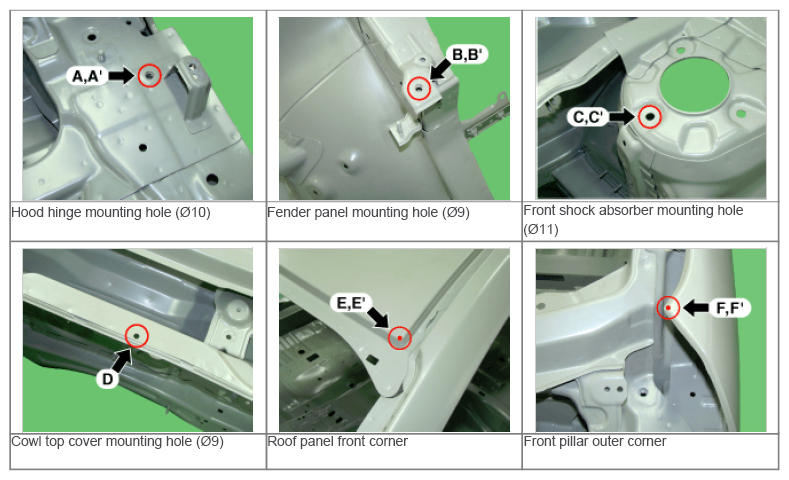

Fig 2: Front Pillar Outer Corner And Roof Panel Front Corner Dimensions
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
