Repair Procedures: Inspection

  1. The rear glass defogger switch inputs can be checked using the GDS.
  2. To check the input value of rear glass defogger switch, select option "IPM".
  3. To consult the present input/output value of IPM, "Current DATA". It provides information of IPM input/output conditions of rear defogger relay.

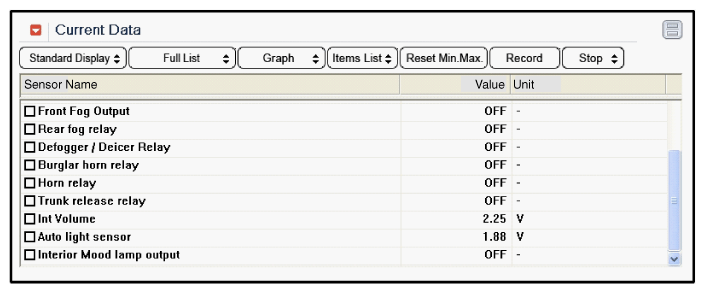

    Fig 1: Display - Rear Fog Relay Current Data Screen
    G10369087Courtesy of HYUNDAI MOTOR AMERICA
  4. To check the input value of rear glass defogger switch in force mode, select option "Actuation Test".

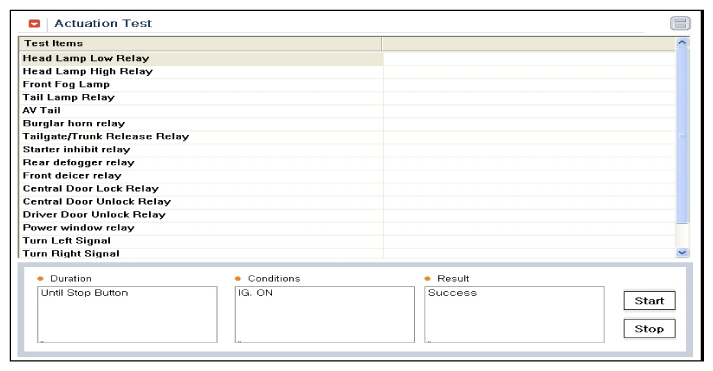

    Fig 2: Display - Head Lamp Low Relay Actuation Test Screen
    G10369088Courtesy of HYUNDAI MOTOR AMERICA
