Front To Front End Module Harness Connection Connector End View (EE11)

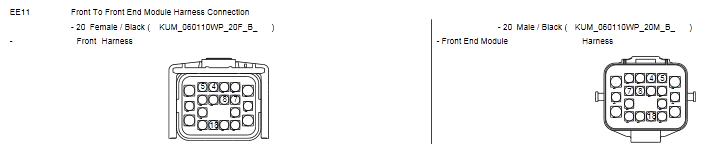

Fig 1: Front To Front End Module Harness Connection Connector End View (EE11)

G10776499

Courtesy of HYUNDAI MOTOR AMERICA
