Fuel Pump Control Module Connector End View (F97)

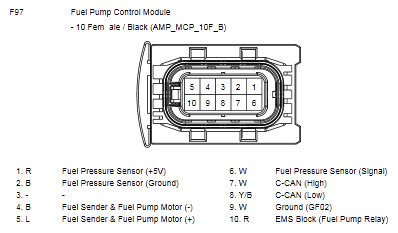

Fig 1: Fuel Pump Control Module Connector End View (F97)

G10776362

Courtesy of HYUNDAI MOTOR AMERICA
