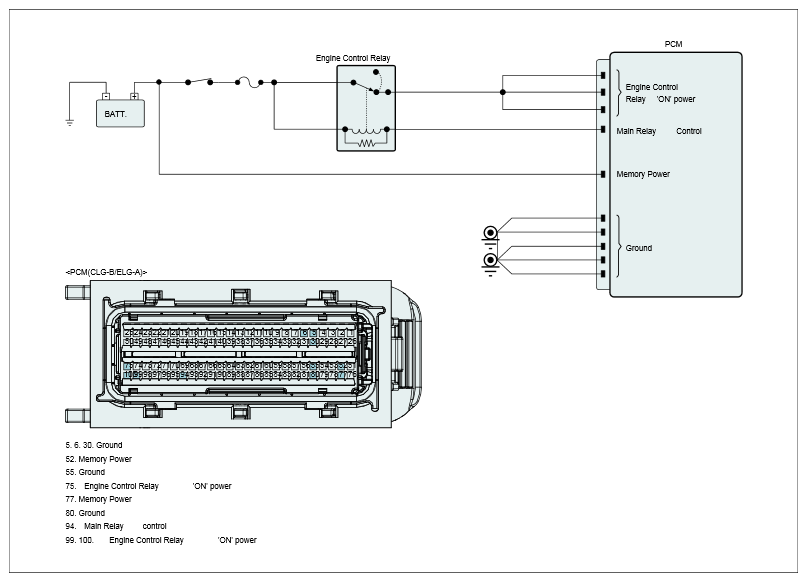

Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis (3 Of 3) >> DTC P0685: ECM/PCM Power Relay Control Circuit / Open >> General Information >> Diagnostic Circuit Diagram
