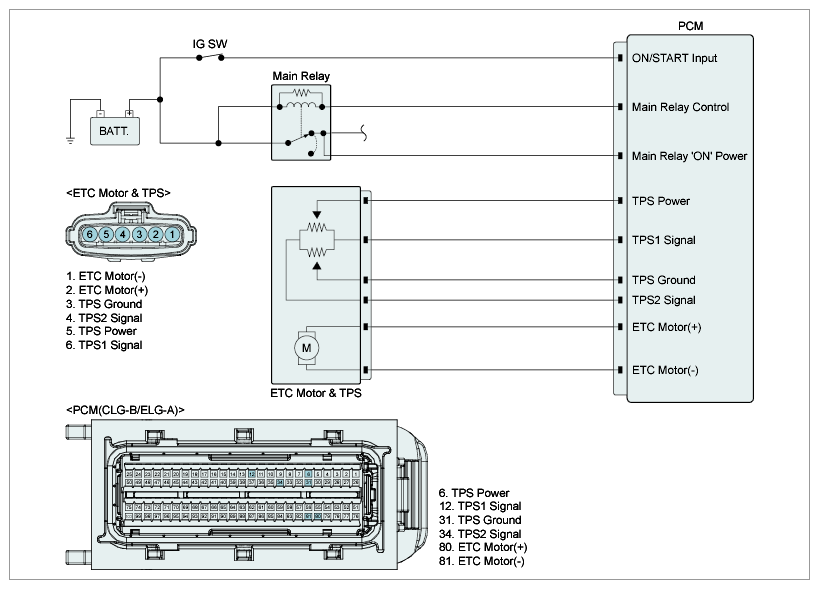

Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 3) >> DTC P0222: Throttle Position Sensor 2 Signal Circuit Low Input >> General Information >> Diagnostic Circuit Diagram
