Inspection flow

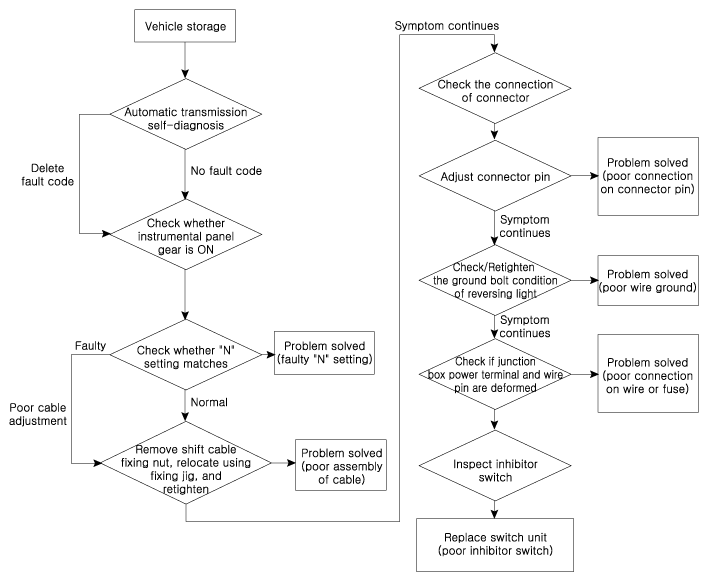

Fig 1: Vehicle Storage Inspection Flow Chart
G10362747Courtesy of HYUNDAI MOTOR AMERICA
