Repair procedures: Removal

  1. Remove the following items;
    1. Engine cover (A).
    2. Air cleaner assembly and air duct (B).

      (Refer to "INTAKE AND EXHAUST SYSTEM ")

    3. Battery and battery tray (C).

      (Refer to "CHARGING SYSTEM ")

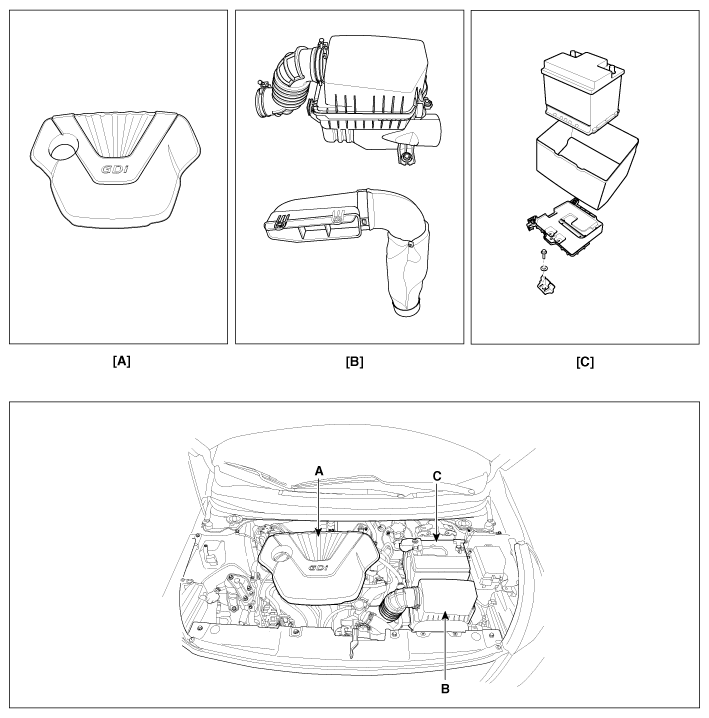

    Fig 1: Engine Cover, Air Duct And Battery Tray
    G10362625Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the ground line after removing the bolt (A).
    Fig 2: Ground Line Bolt
    G10362626Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the solenoid valve connector (A) and inhibitor switch connector (B).
    Fig 3: Solenoid Valve And Inhibitor Switch Connector
    G10362627Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the control cable (C) after removing the nut (A) and the bolt (B).

    Tightening torque:

    1. 9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)
    2. 14.7 ~ 21.6 N.m(1.5 ~ 2.2 kgf.m, 10.9 ~ 15.9 lb-ft)
    Fig 4: Control Cable, Nut And Bolt
    G10362628Courtesy of HYUNDAI MOTOR AMERICA
  5. Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).
    Fig 5: Automatic Transaxle Fluid Cooler Hose Clamp
    G10362629Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the wiring clips (A).
    Fig 6: Wiring Clips
    G10362630Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the solenoid valve connector and inhibitor switch connector wiring mounting bracket (A).
    Fig 7: Inhibitor Switch Connector Wiring Mounting Bracket
    G10362631Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the hood assembly.

    (Refer to "EXTERIOR (HOOD) ".)

  9. Remove the cowl top cover.

    (Refer to "INTERIOR (COWL TOP COVER) ".)

  10. Remove the wiper motor.

    (Refer to "WINDSHIELD WIPER & WASHER SYSTEM ".)

  11. Remove the cowl complete assembly panel (A).
    Fig 8: Cowl Complete Assembly Panel
    G10362632Courtesy of HYUNDAI MOTOR AMERICA
  12. Using the engine support fixture (Support SST No.: 09200-2S200, Adapter SST No.: 09200-2S100, Beam SST No.: 09200 -38001/3N000), hold the engine and transaxle assembly safely.
    Fig 9: Holding Engine And Transaxle Assembly
    G10362633Courtesy of HYUNDAI MOTOR AMERICA
  13. Remove the automatic transaxle upper mounting bolt (A-2ea) and the starter motor mounting bolt (B-2ea).

    Tightening torque:

    (A, B) 42.2 ~ 54.0 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

    Fig 10: Automatic Transaxle Upper Mounting Bolt
    G10362634Courtesy of HYUNDAI MOTOR AMERICA
  14. Remove the mounting cover (A).
    Fig 11: Automatic Transaxle Mounting Cover
    G10362635Courtesy of HYUNDAI MOTOR AMERICA
  15. Remove the automatic transaxle mounting support bracket bolt (A).

    Tightening torque:

    88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.8 lb-ft)

    Fig 12: Automatic Transaxle Mounting Bracket Bolts
    G10362636Courtesy of HYUNDAI MOTOR AMERICA
  16. Remove the under cover (A).
    Fig 13: Vehicle Under Cover
    G10362637Courtesy of HYUNDAI MOTOR AMERICA
  17. Remove the drive shaft assembly.

    (Refer to "DRIVESHAFT ASSEMBLY ".)

  18. Remove the bracket (A).
    Fig 14: Drive Shaft Assembly Bracket
    G10362638Courtesy of HYUNDAI MOTOR AMERICA
  19. Remove the roll rod support bracket (C) after removing bolt (A, B).

    Tightening torque:

    1. 49.0 ~ 68.6 N.m (5.0 ~ 7.0 kgf.m, 36.2 ~ 50.6 lb-ft)
    2. 107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.1 lb-ft)
    Fig 15: Roll Rod Support Bracket And Bolt
    G10362639Courtesy of HYUNDAI MOTOR AMERICA
  20. Remove the dust cover (A).
    Fig 16: Dust Cover
    G10362640Courtesy of HYUNDAI MOTOR AMERICA
  21. Remove the torque converter mounting bolt (A-4ea) with rotating the crankshaft.

    Tightening torque:

    45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)

    Fig 17: Torque Converter Mounting Bolt (A-4ea)
    G10362641Courtesy of HYUNDAI MOTOR AMERICA
  22. Remove the drive shaft cover (A).
    Fig 18: Drive Shaft Cover
    G10362642Courtesy of HYUNDAI MOTOR AMERICA
  23. Remove the lower mounting bolts (A-4ea, B-1ea) of lower part of the transaxle, and the left side cover and remove the transaxle assembly by supporting it with a jack.
CAUTION:
  • Be careful not to damage other system or parts near by when removing the engine and transaxle assembly.

Tightening torque:

  1. 43 ~ 49 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)
  2. 43 ~ 55 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)
Fig 19: Engine And Transaxle Assembly Mounting Bolts
G10362643Courtesy of HYUNDAI MOTOR AMERICA
