Home >> Hyundai >> 2016 >> Accent Sport, Automatic Trans >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> ESC Control Module >> Component And Components Location >> Components

Component And Components Location: Components

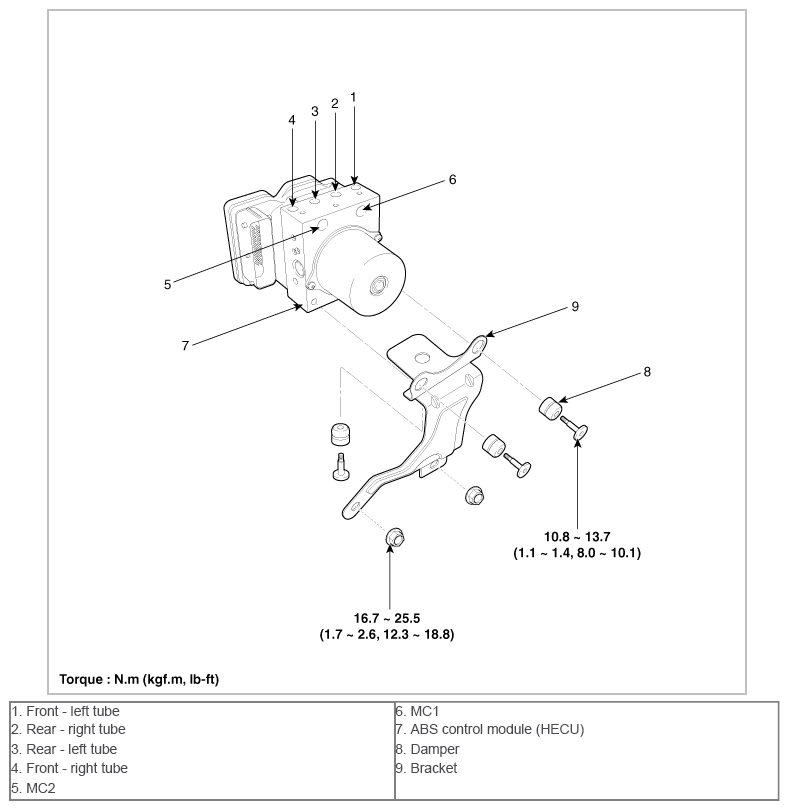

Fig 1: ESC Control Module Components With Torque Specification

G10361752

Courtesy of HYUNDAI MOTOR AMERICA
