Components and Components Location: Components

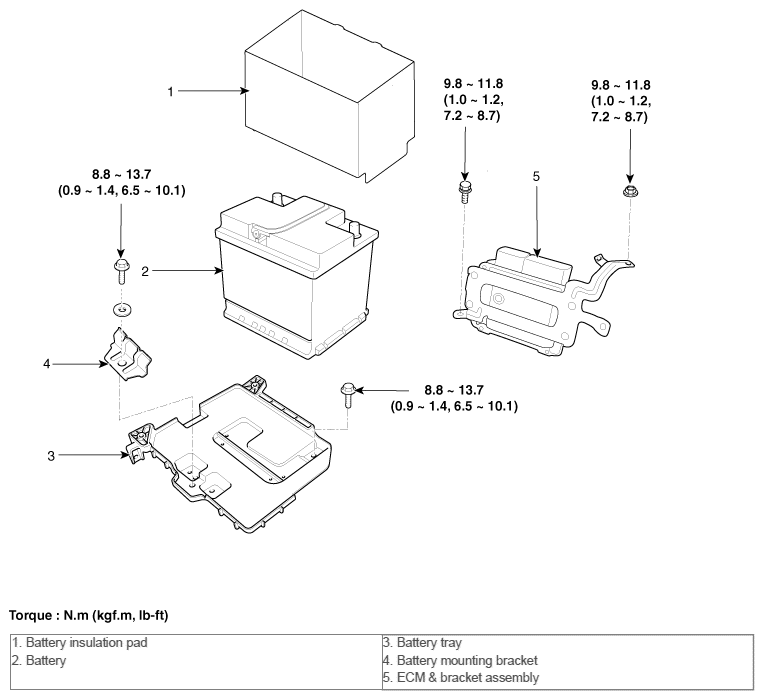

Fig 1: Battery Replacement Components With Torque Specification

G10604398

Courtesy of HYUNDAI MOTOR AMERICA
