Repair Procedures: Removal

WARNING: This page is about a different car, the 2016 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Turn Ignition Switch OFF and disconnect the Negative (-) Battery Cable.
Remove the Lower Crash Pad.
(Refer to: CRASH PAD ).
Remove the knee airbag.
(Refer to AIRBAG MODULE )

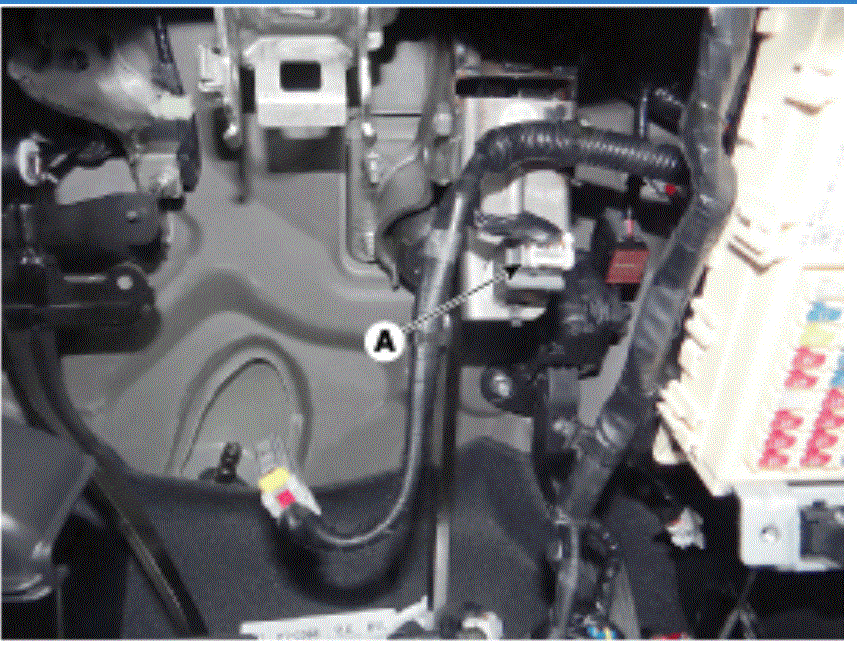

Disconnect the Stop Lamp Switch Connector (A).

Fig 1: Stop Lamp Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA

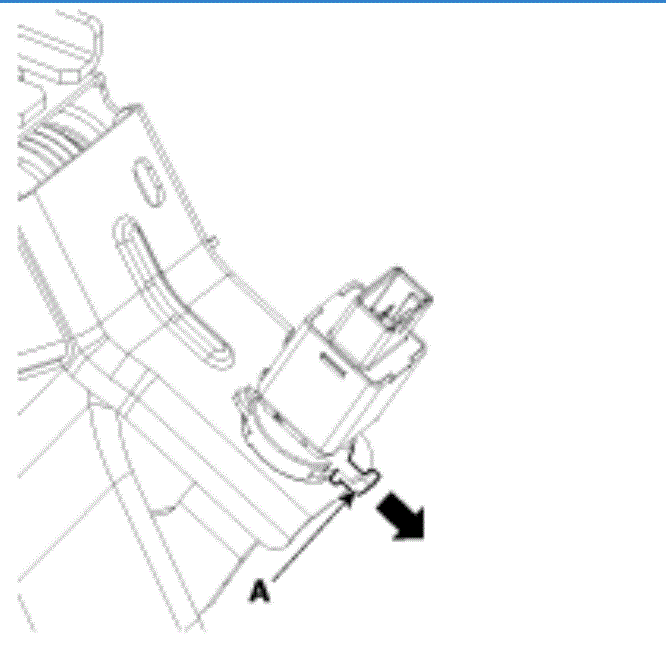

Pull the locking plate (A) as indicated by the arrow.

Fig 2: Identifying Locking Plate (A)
Courtesy of HYUNDAI MOTOR AMERICA

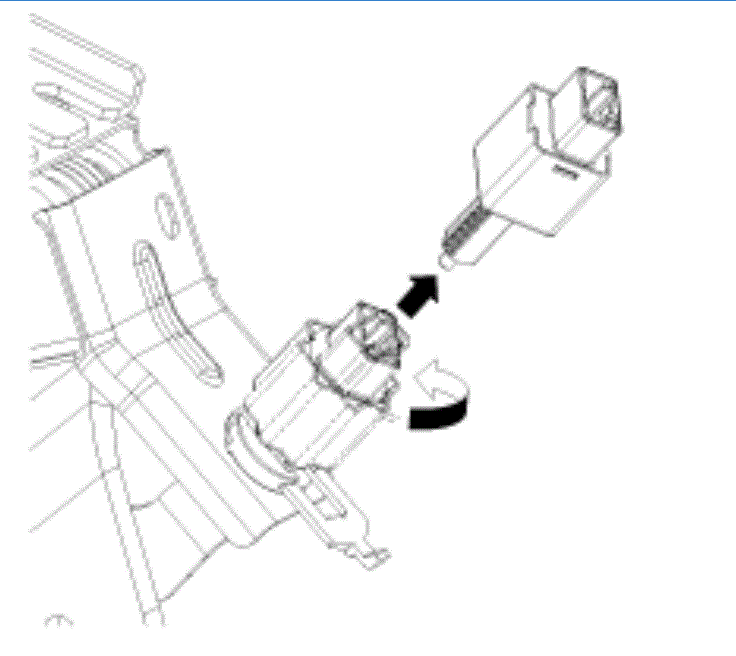

Turn stop lamp switch 45° counterclockwise and remove it.

Fig 3: Turning Stop Lamp Switch 45°
Courtesy of HYUNDAI MOTOR AMERICA

Inspect a removed stop lamp switch along the below procedures.

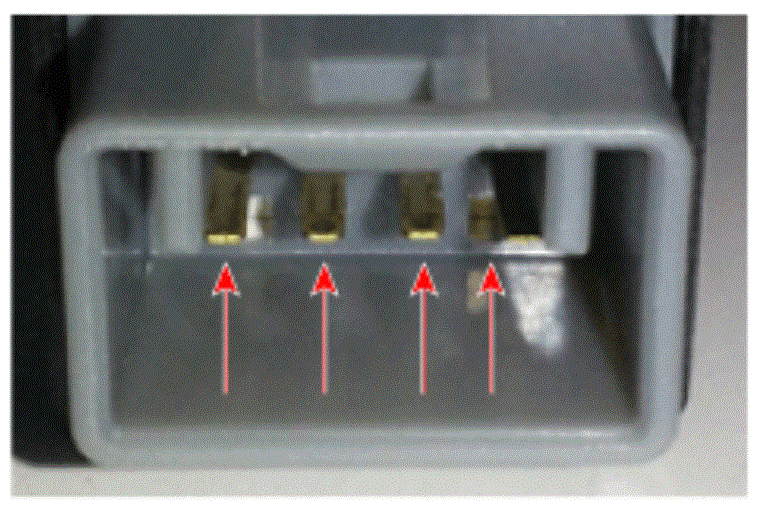

Confirm a normal connection with terminal part
- A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.

Fig 4: Checking For A Connection Mark
Courtesy of HYUNDAI MOTOR AMERICA

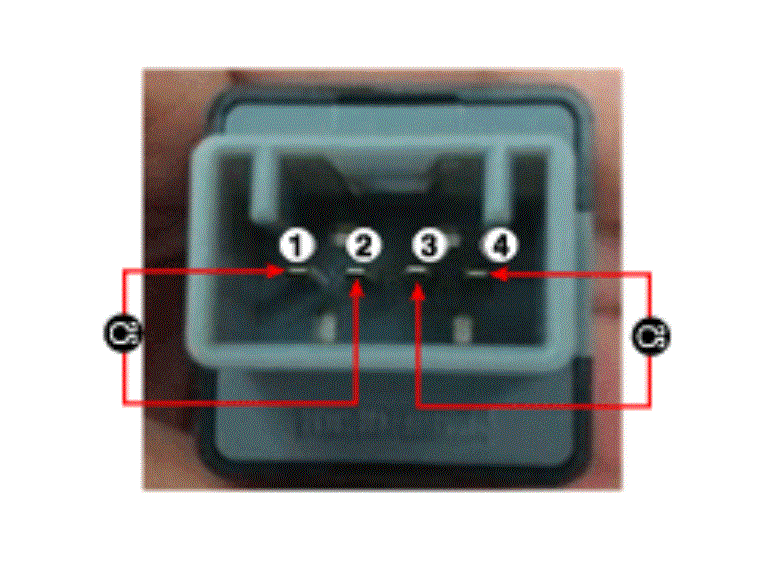

Perform the inspection of parts resistance.

Fig 5: Checking Resistance

Courtesy of HYUNDAI MOTOR AMERICA

STOP LAMP SWITCH RESISTANCE

Resistance (Ω)		3-4	1-2
Non rod protruded (switch turned OFF)		Infinite	0
Rod protruded (switch turned On)		0	Infinite
