Repair Procedures: Removal

Pull the knob (A) in the direction of "F" and remove it, and then remove the console upper cover.

Fig 1: Pulling Knob
Courtesy of HYUNDAI MOTOR AMERICA
Remove the Console.
(Refer to: Body - "FLOOR CONSOLE ")
Disconnect the connector (A) from the shift lever.

Fig 2: Shift Lever Connector Location
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the shift cable (A) from the shift lever.

Fig 3: Shift Cable Location
Courtesy of HYUNDAI MOTOR AMERICA

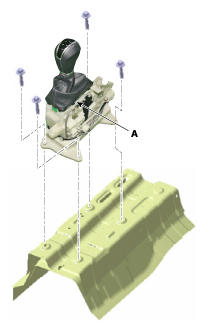

Remove the shift lever (A) after removing the bolts.
Tightening Torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Fig 4: Shift Lever Bolts
Courtesy of HYUNDAI MOTOR AMERICA
