Components and Components Location: Components

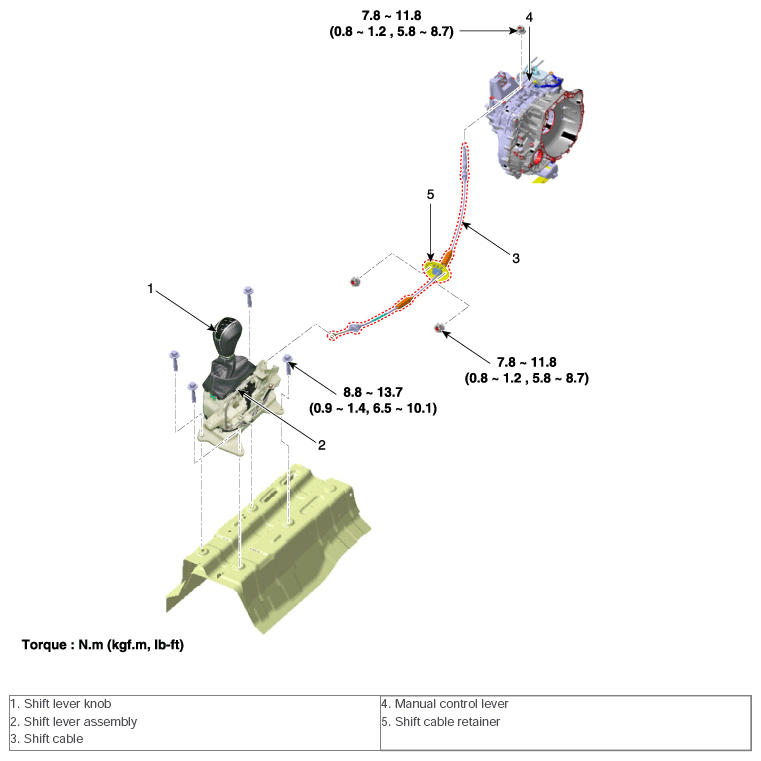

Fig 1: Shift Cable Related Components Location With Torque Specification

G10631799

Courtesy of HYUNDAI MOTOR AMERICA
