Inspection Flow

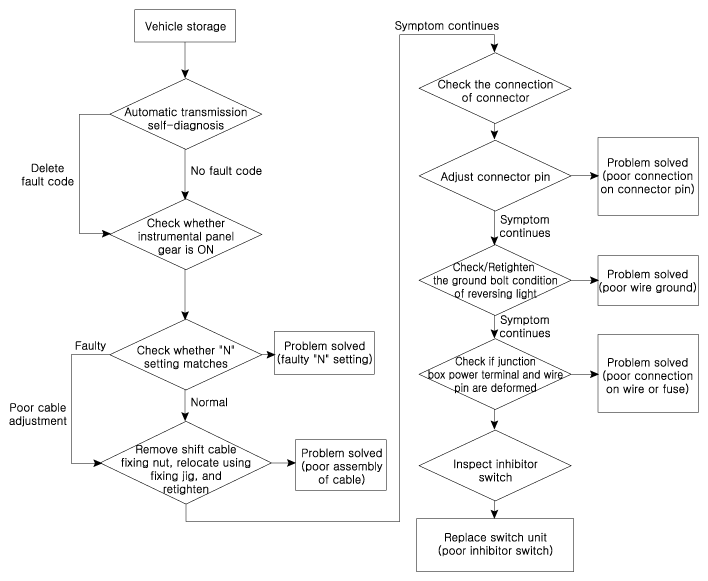

Fig 1: Inhibitor Switch Inspection Flowchart
G10631787Courtesy of HYUNDAI MOTOR AMERICA
